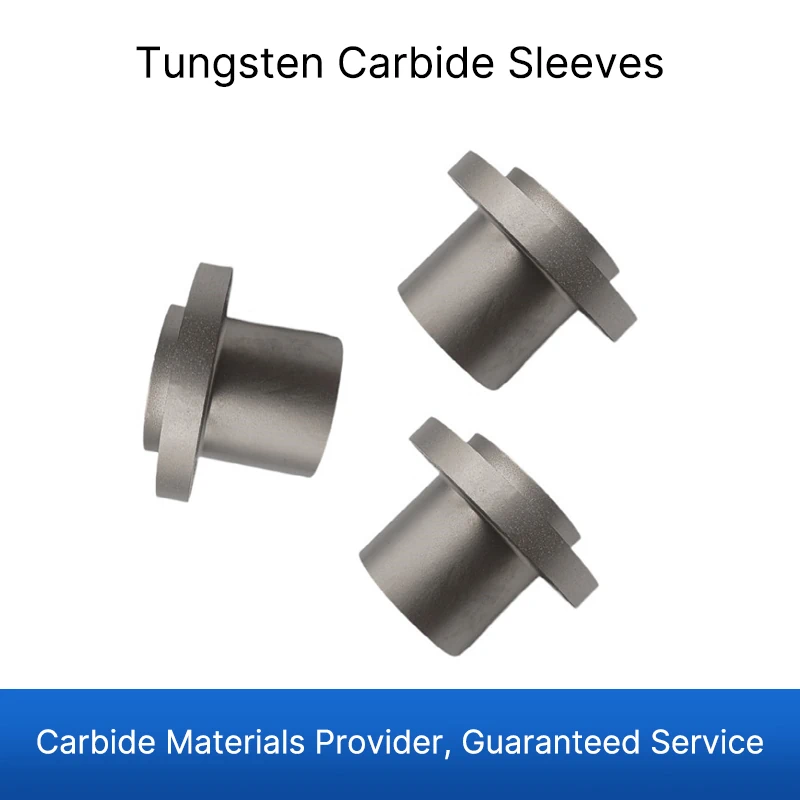

Customized Tungsten Carbide Sleeve Grooving Upper Die Carbide Shaft Sleeve Tool Mold Blanks
Customized tungsten carbide sleeve grooving upper die and carbide shaft sleeve tool mold blanks. Precision-engineered for superior durability and performance, these high-quality components are designed to meet specific industrial needs. Ideal for heavy-duty applications, ensuring long-lasting use and reliability.
Customized Tungsten Carbide Shaft Sleeve Tool Mold Blanks
Our customized tungsten carbide grooving upper die and shaft sleeve tool mold blanks are designed for high-precision industrial applications. Made from premium tungsten carbide, these components offer exceptional wear resistance and durability. Suitable for various machining processes, they ensure long-lasting performance and reliability in demanding environments. Perfect for manufacturing industries that require high-quality tooling solutions.
Features：
-
High Wear Resistance and Durability
Crafted from high-quality tungsten carbide, these tool mold blanks are designed to withstand rigorous industrial use. The material’s superior hardness ensures long-lasting performance, reducing the need for frequent replacements and minimizing downtime. -
Precision Engineering for Specific Applications
Each component is precision-engineered to meet specific industrial requirements. Whether for grooving, forming, or other machining processes, these tool mold blanks are designed to deliver consistent performance and accuracy. -
Customizable to Meet Individual Requirements
Fully customizable to match your unique specifications, these tungsten carbide tool mold blanks can be tailored to fit any application. From standard sizes to bespoke designs, we ensure that your tooling needs are met with precision and reliability.
PRODUCT SPECIFICATIONS
Material List
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Highly wear-resistant straight barrel powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93 | 1820 | 240 | |
| YH07F | 14.7 | 8 | 0.8 | 92.5 | 1750 | 250 | |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Straight barrel forming and shaping molds |
| YH12F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | |
| YH13F | 14.1 | 13 | 0.8 | 90.5 | 1550 | 350 | lron-silicon-aluminum mold blanks with upper and lower punches. |
| GH20F | 13.9 | 15 | 0.8 | 90 | 1430 | 380 | |
| AH15A | 13.95 | 15 | 1.0 | 89.5 | 1350 | 380 | |
| GH12S | 14.10 | 12 | 1-3 | 89.7 | 1400 | 330 | |
| YH20 | 14.75 | 7 | 1-3 | 91 | 1520 | 280 | Wire drawing dies, magnetic material moldspowder metallurgy moldsand wear-resistant parts. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91 | 1500 | 300 | |
| YH40 | 14.5 | 10 | 3.0 | 89.5 | 1350 | 320 | |
| GH05 | 14.35 | 12 | 3.0 | 88.5 | 1250 | 330 | Molds and mandrels for powder metallurgynon-standard structural components. |
| GH10 | 14.35 | 12 | 10.0 | 87.5 | 1150 | 330 | |
| GH15 | 14 | 15 | 3.0 | 87.5 | 1150 | 350 | |
| GH20 | 14 | 15 | 10.0 | 86 | 1050 | 350 | |
| GH40 | 13.6 | 20 | 10.0 | 84.5 | 950 | 310 | Spherical, thick-walled, and long punches. |
| GH50N | 13.4 | 22 | 10.0 | 83.5 | 850 | 290 | Spherical punches. |
| Grade | Co% (±0.5%) | Density (g/cm3 )±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Impact Resistance (kgf- m/cm2) | Application | |
| LG2 | 6 | 14.924 | 90.8 | 320 | 0.28 | Wear-resistant / Wire drawing die | |
| LG3 | 10 | 14.585 | 89.5 | 340 | 0.5 | Strong beam mold | |
| LG5 | 12 | 14.381 | 88.5 | 340 | 0.55 | ||
| LG6 | 15 | 14.085 | 87.5 | 320 | 0.62 | ||
| GH80 | 20 | 14.618 | 84.8 | 310 | 0.80 | Impact-resistant, large-diameter screw mold, nut upper mold, six-piece mold, screw first-strike mold, shear mold | |
| GH90 | 19 | 13.440 | 83.0 | 300 | 0.90 | Impact-resistant, nut mold (thin head type) | |
| GH95 | 20 | 13.267 | 82.5 | 290 | 0.92 | Impact-resistant, nut mold (thin head type)hot extrusion mold | |
| LT6 | 15 | 13.967 | 87.0 | 330 | 0.75 | Stainless steel, low single deformation, strong beam, ball head | |
| LT7 | 20 | 13.461 | 85.5 | 320 | 0.80 | Stainless steel F-head screw mold, screw, trumpet moldnecking first-strike, straight-hole mold (below 5mm aperture) | |
| LT7A | 19 | 13.536 | 86.0 | 300 | 0.75 | Strong beam, edge/neck shrinking, rivet stamping | |
| LT8 | 22 | 13.332 | 84.5 | 280 | 0.85 | Standard beam, support rod, full-tungsten first-strike | |
| LT10 | 23 | 13.246 | 83.5 | 260 | 0.93 | F-head straight-hole mold, trumpet-hole mold, serrated mold convex-head mold, straight-hole mold (for washers) | |
| LT10A | 21 | 13.242 | 83.0 | 250 | 0.85 | Triangle (with F-head), standard iron & large-head products | |
| HD02 | 23 | 13.074 | 82.0 | 230 | 0.95 | Stacked plates, flange bolts | |
| YG20 | 19 | 13.571 | 86.5 | 300 | 0.60 | Base pad | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Wire drawing dies, precision cutting of non-ferrous materialsand powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH07F | 14.70 | 8 | 0.8 | 92.5 | 1750 | 250 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Cutting tools for plywood and solid wood (straight and shaped knives),round bar milling cutters, powder metallurgy molds, and drawing dies. |
| YH00F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | End mills, reamers, and other bar materials. |
| YH20 | 14.90 | 7 | 1-3 | 91.0 | 1520 | 280 | Wire drawing dies, powder metallurgy molds, wear-resistant parts and straight woodworking knives. |
| YH15 | 14.00 | 15 | 3.0 | 87.5 | 1150 | 350 | Stamping of aluminum and copper sheets, progressive dies,slitting knives, and powder metallurgy structural components. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | Wire drawing dies, powder metallurgy intermediate molds, rolling rollers cement drills, wear-resistant parts, and tinplate can-making molds. |
| YH30 | 14.60 | 9 | 1-3 | 91.0 | 1500 | 300 | Powder metallurgy, deep drawing dies, wire drawing diesmagnetic material molds, and wear-resistant parts. |
| YH40 | 14.65 | 10 | 3.0 | 89.5 | 1360 | 320 | |
| GH04N | 14.80 | 5 | 0.8 | 93.8 | 1950 | 260 | Resistant to electrical corrosion, widely used in the gold and silver jewelry industry and copper wire industry. |
| GH05N | 14.50 | 7 | 0.6 | 92.8 | 1850 | 240 | |
| GH06N | 14.75 | 5 | 1.0 | 92.0 | 1750 | 280 | Resistant to electrical corrosion, widely used in rollers, the gold and silver jewelry industry, and the copper wire industry. |
| CN9A | 14.55 | Ni | 1.0 | 91.0 | 1550 | 280 | Non-magnetic. |
| CN14 | 14.10 | Ni | 2.0 | 87.0 | 1100 | 290 | |
| CN15 | 14.00 | Ni | 3.0 | 86.0 | 1000 | 290 | |
| Grade | Cobalt Content (Co%) | Density (g/cm³)±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Fracture Toughness MPa.m1/2 | Application | |
| YH68N | 6 | 14.92 | 91.00 | 320.00 | 12.00 | Low adhesion, low adhesive wear | |
| GH13S | 12 | 14.10 | 89.50 | 380.00 | 17.00 | Strong cutting edge wear resistance | |
| GH12S | 12 | 14.14 | 90.80 | 360.00 | 16.00 | High wear resistance, high corrosion resistance | |
| AH15A | 15 | 13.98 | 89.50 | 380.00 | 17.00 | Excellent comprehensive performance | |
| GH16S | 19 | 13.51 | 87.50 | 310.00 | 15.00 | Complex shapes, thick plate stamping | |
| GH20F | 15 | 14.03 | 90.00 | 360.00 | 15.00 | Strong versatility | |
| AH15F | 15 | 13.98 | 89.60 | 370.00 | 15.00 | ||
| YH14F | 13 | 14.28 | 90.50 | 330.00 | 15.00 | Connector stamping, 3C hardware components | |
| AH12A | 12 | 14.35 | 91.50 | 390.00 | 12.00 | ||
| YH10F | 10 | 14.58 | 91.80 | 380.00 | 11.00 | ||
| YH12U | 12 | 14.17 | 92.20 | 330.00 | 8.00 | Lead frame, small punches | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Thermos cup stretching dies. |
| GH20F | 13.95 | 15 | 0.8 | 90.0 | 1430 | 380 | Battery punching rods. |
| YH20 | 14.75 | 7 | 1-3 | 91.0 | 1520 | 280 | Sleeves and drawing dies. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91.0 | 1500 | 300 | |
| YH40 | 14.50 | 10 | 3.0 | 89.5 | 1350 | 320 | Deep drawing dies and drawing dies. |
CUSTOM ON YOUR DEMAND
