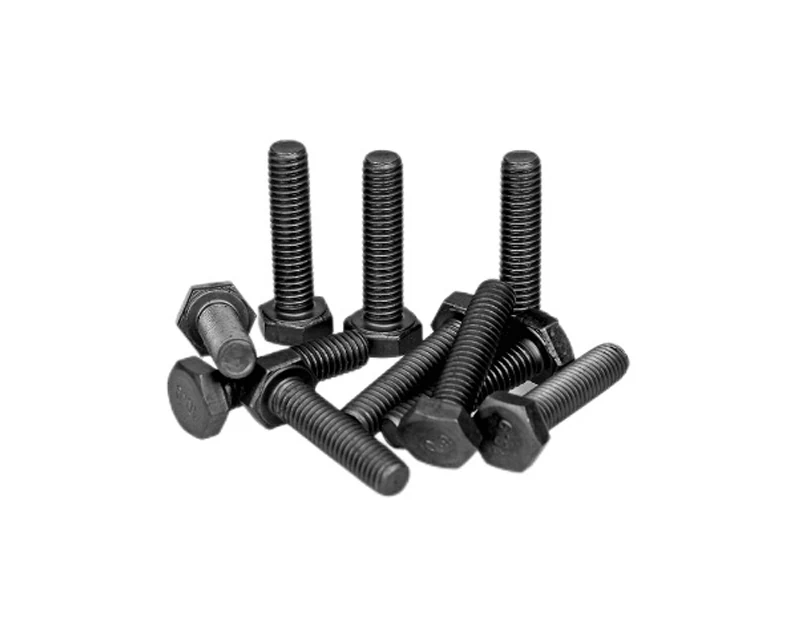

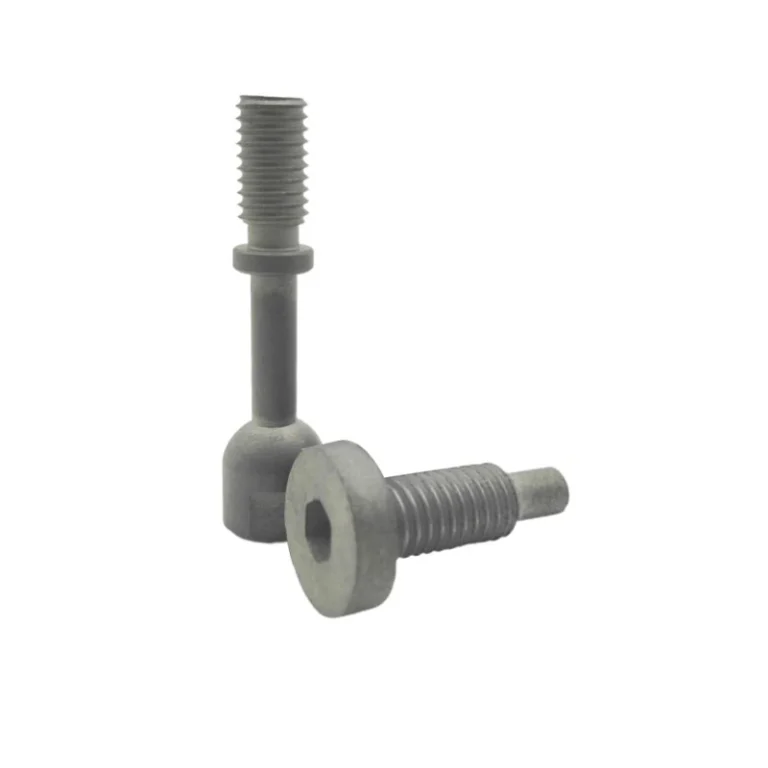

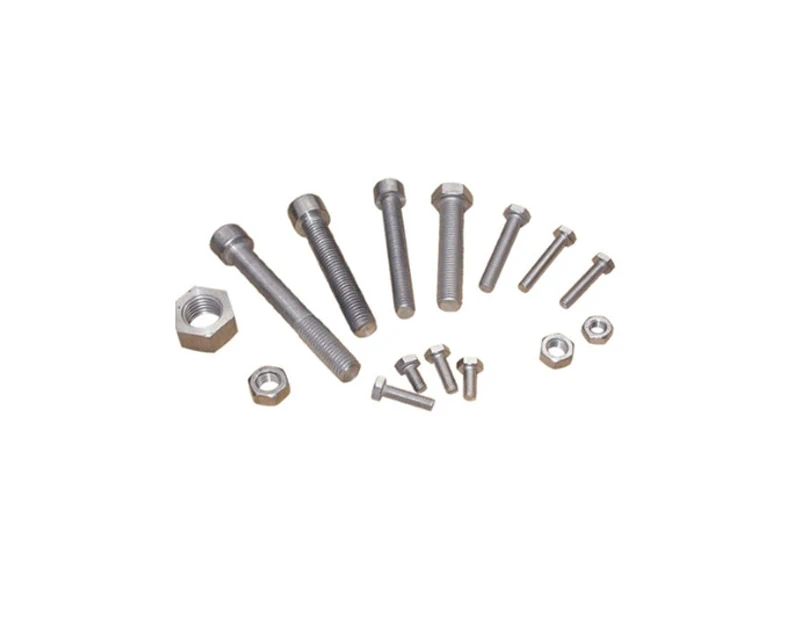

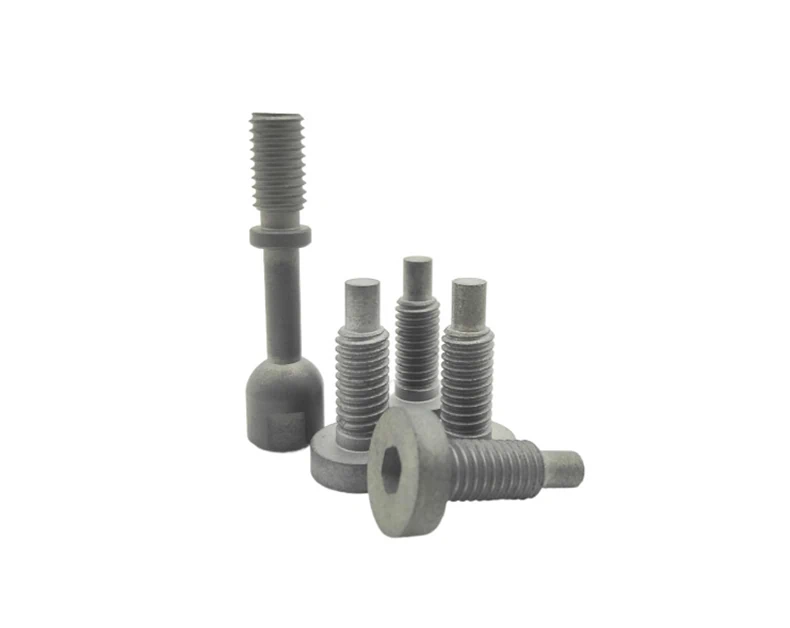

Cemented Carbide Blanks Fasteners External Threaded Special Shaped Parts Tungsten Carbide Blanks External Dowel Shaped Part
Our comprehensive range includes top-tier cemented carbide and tungsten carbide blanks. These blanks are the raw materials for creating a variety of essential components. Fasteners made from these blanks ensure secure connections in mechanical systems. The external threaded special shaped parts and external dowel shaped parts, crafted with precision, offer unique solutions for complex assembly needs. The carbide materials endow these products with remarkable hardness and wear resistance, making them suitable for applications in industries like manufacturing, aerospace, and automotive, where reliability and durability are crucial.
High-Quality Cemented Carbide Components
Our company specializes in providing a diverse range of cemented carbide products. Cemented carbide and tungsten carbide blanks serve as the fundamental building blocks. These blanks are meticulously processed to create high – performance fasteners that guarantee secure connections in various mechanical setups. The external threaded special shaped parts are designed to meet the demands of complex assemblies, offering customized solutions. Additionally, the external dowel shaped parts play a crucial role in accurate positioning and alignment.
Features:
-
Exceptional Material Strength: The use of cemented carbide and tungsten carbide materials endows our products with outstanding hardness. This high hardness ensures they can withstand heavy loads and harsh working conditions without deformation or damage.
-
Superior Wear Resistance: Thanks to the unique composition of the carbides, these components have excellent wear – resistant properties. They can endure continuous friction and abrasion, significantly extending their service life.
-
Precision Manufacturing: Our advanced manufacturing techniques enable the production of external threaded and dowel shaped parts with tight tolerances. This precision guarantees seamless integration and optimal functionality in mechanical systems.
PRODUCT SPECIFICATIONS
Material List
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Highly wear-resistant straight barrel powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93 | 1820 | 240 | |
| YH07F | 14.7 | 8 | 0.8 | 92.5 | 1750 | 250 | |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Straight barrel forming and shaping molds |
| YH12F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | |
| YH13F | 14.1 | 13 | 0.8 | 90.5 | 1550 | 350 | lron-silicon-aluminum mold blanks with upper and lower punches. |
| GH20F | 13.9 | 15 | 0.8 | 90 | 1430 | 380 | |
| AH15A | 13.95 | 15 | 1.0 | 89.5 | 1350 | 380 | |
| GH12S | 14.10 | 12 | 1-3 | 89.7 | 1400 | 330 | |
| YH20 | 14.75 | 7 | 1-3 | 91 | 1520 | 280 | Wire drawing dies, magnetic material moldspowder metallurgy moldsand wear-resistant parts. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91 | 1500 | 300 | |
| YH40 | 14.5 | 10 | 3.0 | 89.5 | 1350 | 320 | |
| GH05 | 14.35 | 12 | 3.0 | 88.5 | 1250 | 330 | Molds and mandrels for powder metallurgynon-standard structural components. |
| GH10 | 14.35 | 12 | 10.0 | 87.5 | 1150 | 330 | |
| GH15 | 14 | 15 | 3.0 | 87.5 | 1150 | 350 | |
| GH20 | 14 | 15 | 10.0 | 86 | 1050 | 350 | |
| GH40 | 13.6 | 20 | 10.0 | 84.5 | 950 | 310 | Spherical, thick-walled, and long punches. |
| GH50N | 13.4 | 22 | 10.0 | 83.5 | 850 | 290 | Spherical punches. |
| Grade | Co% (±0.5%) | Density (g/cm3 )±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Impact Resistance (kgf- m/cm2) | Application | |
| HD02 | 23 | 13.07 | 82.0 | 230 | 0.95 | Stacked plates, flange bolts | |
| LG2 | 6 | 14.92 | 90.8 | 320 | 0.28 | Wear-resistant / Wire drawing die | |
| LG3 | 10 | 14.59 | 89.5 | 340 | 0.5 | Strong beam mold | |
| LG5 | 12 | 14.38 | 88.5 | 340 | 0.55 | ||
| LG6 | 15 | 14.09 | 87.5 | 320 | 0.62 | ||
| GH80 | 20 | 14.62 | 84.5 | 310 | 0.80 | Impact-resistant, large-diameter screw mold, nut upper mold, six-piece mold, screw first-strike mold, shear mold | |
| GH90 | 19 | 13.44 | 83.0 | 300 | 0.90 | Impact-resistant, nut mold (thin head type) | |
| GH95 | 20 | 13.27 | 82.0 | 290 | 0.92 | Impact-resistant, nut mold (thin head type)hot extrusion mold | |
| LT6 | 15 | 13.97 | 87.0 | 330 | 0.75 | Stainless steel, low single deformation, strong beam, ball head | |
| LT7 | 20 | 13.46 | 85.5 | 320 | 0.80 | Stainless steel F-head screw mold, screw, trumpet moldnecking first-strike, straight-hole mold (below 5mm aperture) | |
| LT7A | 19 | 13.54 | 86.0 | 300 | 0.75 | Strong beam, edge/neck shrinking, rivet stamping | |
| LT8 | 22 | 13.33 | 84.2 | 280 | 0.85 | Standard beam, support rod, full-tungsten first-strike | |
| LT10 | 23 | 13.25 | 83.5 | 260 | 0.93 | F-head straight-hole mold, trumpet-hole mold, serrated mold convex-head mold, straight-hole mold (for washers) | |
| LT10A | 21 | 13.24 | 83.0 | 250 | 0.85 | Triangle (with F-head), standard iron & large-head products | |
| YG20 | 19 | 13.57 | 86.5 | 300 | 0.60 | Base pad | |
| GH80 | 20 | 14.62 | 84.5 | 310 | 0.80 | Impact-resistant, large-diameter screw mold nut upper mold, six-piece mold, screw first-strike mold, shear mold | |
| GH90 | 19 | 13.44 | 83.5 | 300 | 0.90 | Impact-resistant, nut mold (thin head type) | |
| GH95 | 20 | 13.27 | 82.0 | 290 | 0.92 | Impact-resistant, nut mold (thin head type)hot extrusion mold | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Wire drawing dies, precision cutting of non-ferrous materialsand powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH07F | 14.70 | 8 | 0.8 | 92.5 | 1750 | 250 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Cutting tools for plywood and solid wood (straight and shaped knives),round bar milling cutters, powder metallurgy molds, and drawing dies. |
| YH12F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | End mills, reamers, and other bar materials. |
| YH20 | 14.90 | 7 | 1-3 | 91.0 | 1520 | 280 | Wire drawing dies, powder metallurgy molds, wear-resistant parts and straight woodworking knives. |
| YH15 | 14.00 | 15 | 3.0 | 87.5 | 1150 | 350 | Stamping of aluminum and copper sheets, progressive dies,slitting knives, and powder metallurgy structural components. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | Wire drawing dies, powder metallurgy intermediate molds, rolling rollers cement drills, wear-resistant parts, and tinplate can-making molds. |
| YH30 | 14.60 | 9 | 1-3 | 91.0 | 1500 | 300 | Powder metallurgy, deep drawing dies, wire drawing diesmagnetic material molds, and wear-resistant parts. |
| YH40 | 14.65 | 10 | 3.0 | 89.5 | 1360 | 320 | |
| GH04N | 14.80 | 5 | 0.8 | 93.8 | 1950 | 260 | Resistant to electrical corrosion, widely used in the gold and silver jewelry industry and copper wire industry. |
| GH05N | 14.50 | 7 | 0.6 | 92.8 | 1850 | 240 | |
| GH06N | 14.75 | 5 | 1.0 | 92.0 | 1750 | 280 | Resistant to electrical corrosion, widely used in rollers, the gold and silver jewelry industry, and the copper wire industry. |
| CN9A | 14.55 | Ni | 1.0 | 91.0 | 1550 | 280 | Non-magnetic. |
| CN14 | 14.10 | Ni | 2.0 | 87.0 | 1100 | 290 | |
| CN15 | 14.00 | Ni | 3.0 | 86.0 | 1000 | 290 | |
| Grade | Cobalt Content (Co%) | Density (g/cm³)±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Fracture Toughness MPa.m1/2 | Application | |
| YH68N | 6 | 14.92 | 91.00 | 320.00 | 12.00 | Low adhesion, low adhesive wear | |
| GH13S | 12 | 14.10 | 89.50 | 380.00 | 17.00 | Strong cutting edge wear resistance | |
| GH12S | 12 | 14.14 | 90.80 | 360.00 | 16.00 | High wear resistance, high corrosion resistance | |
| AH15A | 15 | 13.98 | 89.50 | 380.00 | 17.00 | Excellent comprehensive performance | |
| GH16S | 19 | 13.51 | 87.50 | 310.00 | 15.00 | Complex shapes, thick plate stamping | |
| GH20F | 15 | 14.03 | 90.00 | 360.00 | 15.00 | Strong versatility | |
| AH15F | 15 | 13.98 | 89.60 | 370.00 | 15.00 | ||
| YH14F | 13 | 14.28 | 90.50 | 330.00 | 15.00 | Connector stamping, 3C hardware components | |
| AH12A | 12 | 14.35 | 91.50 | 390.00 | 12.00 | ||
| YH10F | 10 | 14.58 | 91.80 | 380.00 | 11.00 | ||
| YH12U | 12 | 14.17 | 92.20 | 330.00 | 8.00 | Lead frame, small punches | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Thermos cup stretching dies. |
| GH20F | 13.95 | 15 | 0.8 | 90.0 | 1430 | 380 | Battery punching rods. |
| YH20 | 14.75 | 7 | 1-3 | 91.0 | 1520 | 280 | Sleeves and drawing dies. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91.0 | 1500 | 300 | |
| YH40 | 14.50 | 10 | 3.0 | 89.5 | 1350 | 320 | Deep drawing dies and drawing dies. |
CUSTOM ON YOUR DEMAND
