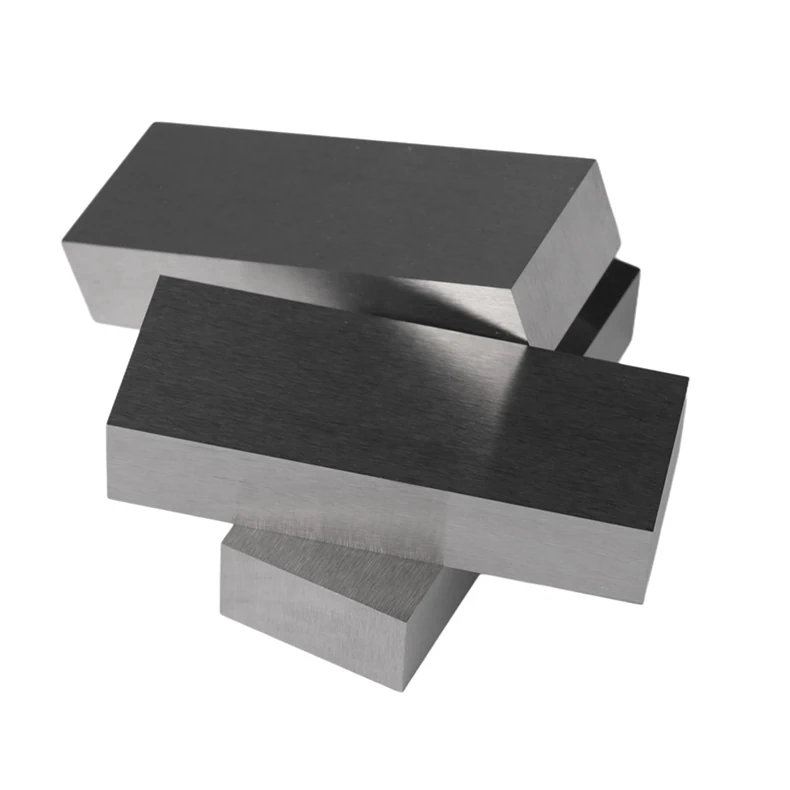

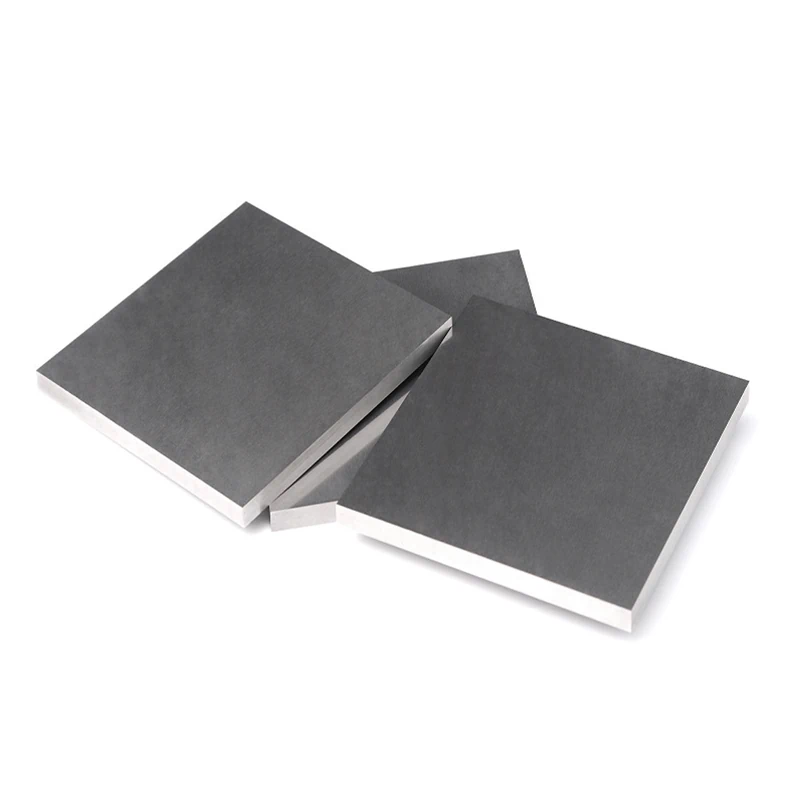

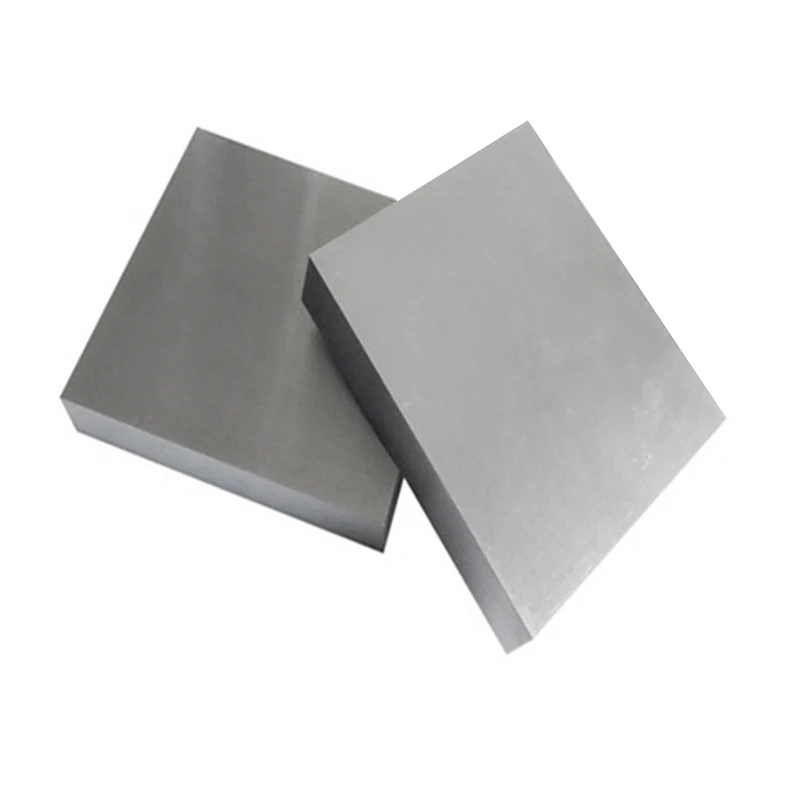

Wear Resistant Tungsten Carbide Plate for Stamping Carbide for Industrial Hardware High Speed Punch Dies
Our Wear Resistant Tungsten Carbide Plate is a game - changer for industrial hardware high - speed punch die applications. Crafted from top - grade tungsten carbide, it stands out with remarkable wear resistance. This property allows it to endure the harsh and repetitive impacts of high - speed stamping operations.
In industrial hardware processing, where precision and durability are crucial, this plate shines. It significantly extends the lifespan of punch dies, minimizing costly replacements and downtime. Its reliable performance not only boosts overall productivity but also enhances the quality of stamped products, making it an essential choice for any high - intensity stamping setup.
High-Performance Tungsten-Cobalt Wire-Cut Tungsten Carbide Plate
Our Tungsten-Cobalt Wire-Cut Plate is meticulously designed for multi – station progressive dies, standing as an optimal option in the industrial stamping realm.
Product Features:
-
Exceptional Wear and Pressure Resistance: Crafted from high-quality tungsten-cobalt tungsten carbide, it can endure the substantial wear and pressure during high-intensity stamping. This not only remarkably extends the service life of molds but also greatly reduces the replacement frequency, thus saving both time and cost for production.
-
Precise Wire-Cutting Technology: The plate undergoes sophisticated machining, achieving high – level dimensional accuracy. This precision meets the stringent requirements of components in multi – station progressive dies, ensuring the consistency and high – quality of stamped products. Whether it’s for producing minute and intricate parts in electronic progressive dies or larger components in general stamping dies, the plate’s accuracy is a guarantee.
-
Superb Adaptability: It fits perfectly into the complex working environment of multi-station progressive dies. During continuous stamping operations, it maintains stable performance, providing strong support for enhancing industrial production efficiency. The plate can adapt to various stamping speeds and pressures, showing its reliability and versatility.
With these features, our product can effectively boost the efficiency and quality of industrial stamping production. It helps enterprises cut down costs and unlock greater value, making it a preferred choice for industries striving for excellence.
PRODUCT SPECIFICATIONS
Material List
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Highly wear-resistant straight barrel powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93 | 1820 | 240 | |
| YH07F | 14.7 | 8 | 0.8 | 92.5 | 1750 | 250 | |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Straight barrel forming and shaping molds |
| YH12F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | |
| YH13F | 14.1 | 13 | 0.8 | 90.5 | 1550 | 350 | lron-silicon-aluminum mold blanks with upper and lower punches. |
| GH20F | 13.9 | 15 | 0.8 | 90 | 1430 | 380 | |
| AH15A | 13.95 | 15 | 1.0 | 89.5 | 1350 | 380 | |
| GH12S | 14.10 | 12 | 1-3 | 89.7 | 1400 | 330 | |
| YH20 | 14.75 | 7 | 1-3 | 91 | 1520 | 280 | Wire drawing dies, magnetic material moldspowder metallurgy moldsand wear-resistant parts. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91 | 1500 | 300 | |
| YH40 | 14.5 | 10 | 3.0 | 89.5 | 1350 | 320 | |
| GH05 | 14.35 | 12 | 3.0 | 88.5 | 1250 | 330 | Molds and mandrels for powder metallurgynon-standard structural components. |
| GH10 | 14.35 | 12 | 10.0 | 87.5 | 1150 | 330 | |
| GH15 | 14 | 15 | 3.0 | 87.5 | 1150 | 350 | |
| GH20 | 14 | 15 | 10.0 | 86 | 1050 | 350 | |
| GH40 | 13.6 | 20 | 10.0 | 84.5 | 950 | 310 | Spherical, thick-walled, and long punches. |
| GH50N | 13.4 | 22 | 10.0 | 83.5 | 850 | 290 | Spherical punches. |
| Grade | Co% (±0.5%) | Density (g/cm3 )±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Impact Resistance (kgf- m/cm2) | Application | |
| LG2 | 6 | 14.924 | 90.8 | 320 | 0.28 | Wear-resistant / Wire drawing die | |
| LG3 | 10 | 14.585 | 89.5 | 340 | 0.5 | Strong beam mold | |
| LG5 | 12 | 14.381 | 88.5 | 340 | 0.55 | ||
| LG6 | 15 | 14.085 | 87.5 | 320 | 0.62 | ||
| GH80 | 20 | 14.618 | 84.8 | 310 | 0.80 | Impact-resistant, large-diameter screw mold, nut upper mold, six-piece mold, screw first-strike mold, shear mold | |
| GH90 | 19 | 13.440 | 83.0 | 300 | 0.90 | Impact-resistant, nut mold (thin head type) | |
| GH95 | 20 | 13.267 | 82.5 | 290 | 0.92 | Impact-resistant, nut mold (thin head type)hot extrusion mold | |
| LT6 | 15 | 13.967 | 87.0 | 330 | 0.75 | Stainless steel, low single deformation, strong beam, ball head | |
| LT7 | 20 | 13.461 | 85.5 | 320 | 0.80 | Stainless steel F-head screw mold, screw, trumpet moldnecking first-strike, straight-hole mold (below 5mm aperture) | |
| LT7A | 19 | 13.536 | 86.0 | 300 | 0.75 | Strong beam, edge/neck shrinking, rivet stamping | |
| LT8 | 22 | 13.332 | 84.5 | 280 | 0.85 | Standard beam, support rod, full-tungsten first-strike | |
| LT10 | 23 | 13.246 | 83.5 | 260 | 0.93 | F-head straight-hole mold, trumpet-hole mold, serrated mold convex-head mold, straight-hole mold (for washers) | |
| LT10A | 21 | 13.242 | 83.0 | 250 | 0.85 | Triangle (with F-head), standard iron & large-head products | |
| HD02 | 23 | 13.074 | 82.0 | 230 | 0.95 | Stacked plates, flange bolts | |
| YG20 | 19 | 13.571 | 86.5 | 300 | 0.60 | Base pad | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Wire drawing dies, precision cutting of non-ferrous materialsand powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH07F | 14.70 | 8 | 0.8 | 92.5 | 1750 | 250 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Cutting tools for plywood and solid wood (straight and shaped knives),round bar milling cutters, powder metallurgy molds, and drawing dies. |
| YH00F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | End mills, reamers, and other bar materials. |
| YH20 | 14.90 | 7 | 1-3 | 91.0 | 1520 | 280 | Wire drawing dies, powder metallurgy molds, wear-resistant parts and straight woodworking knives. |
| YH15 | 14.00 | 15 | 3.0 | 87.5 | 1150 | 350 | Stamping of aluminum and copper sheets, progressive dies,slitting knives, and powder metallurgy structural components. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | Wire drawing dies, powder metallurgy intermediate molds, rolling rollers cement drills, wear-resistant parts, and tinplate can-making molds. |
| YH30 | 14.60 | 9 | 1-3 | 91.0 | 1500 | 300 | Powder metallurgy, deep drawing dies, wire drawing diesmagnetic material molds, and wear-resistant parts. |
| YH40 | 14.65 | 10 | 3.0 | 89.5 | 1360 | 320 | |
| GH04N | 14.80 | 5 | 0.8 | 93.8 | 1950 | 260 | Resistant to electrical corrosion, widely used in the gold and silver jewelry industry and copper wire industry. |
| GH05N | 14.50 | 7 | 0.6 | 92.8 | 1850 | 240 | |
| GH06N | 14.75 | 5 | 1.0 | 92.0 | 1750 | 280 | Resistant to electrical corrosion, widely used in rollers, the gold and silver jewelry industry, and the copper wire industry. |
| CN9A | 14.55 | Ni | 1.0 | 91.0 | 1550 | 280 | Non-magnetic. |
| CN14 | 14.10 | Ni | 2.0 | 87.0 | 1100 | 290 | |
| CN15 | 14.00 | Ni | 3.0 | 86.0 | 1000 | 290 | |
| Grade | Cobalt Content (Co%) | Density (g/cm³)±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Fracture Toughness MPa.m1/2 | Application | |
| YH68N | 6 | 14.92 | 91.00 | 320.00 | 12.00 | Low adhesion, low adhesive wear | |
| GH13S | 12 | 14.10 | 89.50 | 380.00 | 17.00 | Strong cutting edge wear resistance | |
| GH12S | 12 | 14.14 | 90.80 | 360.00 | 16.00 | High wear resistance, high corrosion resistance | |
| AH15A | 15 | 13.98 | 89.50 | 380.00 | 17.00 | Excellent comprehensive performance | |
| GH16S | 19 | 13.51 | 87.50 | 310.00 | 15.00 | Complex shapes, thick plate stamping | |
| GH20F | 15 | 14.03 | 90.00 | 360.00 | 15.00 | Strong versatility | |
| AH15F | 15 | 13.98 | 89.60 | 370.00 | 15.00 | ||
| YH14F | 13 | 14.28 | 90.50 | 330.00 | 15.00 | Connector stamping, 3C hardware components | |
| AH12A | 12 | 14.35 | 91.50 | 390.00 | 12.00 | ||
| YH10F | 10 | 14.58 | 91.80 | 380.00 | 11.00 | ||
| YH12U | 12 | 14.17 | 92.20 | 330.00 | 8.00 | Lead frame, small punches | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Thermos cup stretching dies. |
| GH20F | 13.95 | 15 | 0.8 | 90.0 | 1430 | 380 | Battery punching rods. |
| YH20 | 14.75 | 7 | 1-3 | 91.0 | 1520 | 280 | Sleeves and drawing dies. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91.0 | 1500 | 300 | |
| YH40 | 14.50 | 10 | 3.0 | 89.5 | 1350 | 320 | Deep drawing dies and drawing dies. |
CUSTOM ON YOUR DEMAND
