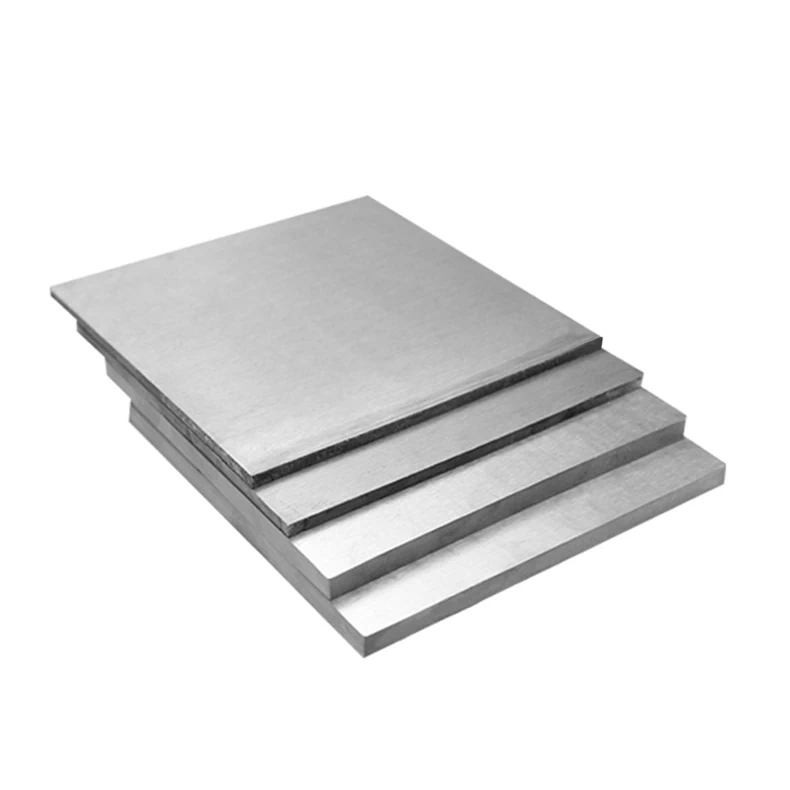

Tungsten-Cobalt Wire Cut Plate Wear Resistant and Pressure Resistant Tungsten Carbide Plate for Multi Station Progressive Dies
Our Wear Resistant Tungsten Carbide Plate is designed for industrial hardware high - speed punch die applications. It's made of premium tungsten carbide, offering exceptional wear resistance to endure continuous high - speed stamping, which reduces wear and extends its service life. With high hardness, it ensures precise punching and stamping while maintaining die accuracy over time. Its excellent impact resistance allows it to withstand intense impacts during high - speed operations, minimizing damage risks. This plate is an ideal solution for industries aiming to boost productivity and cut costs in hardware stamping.

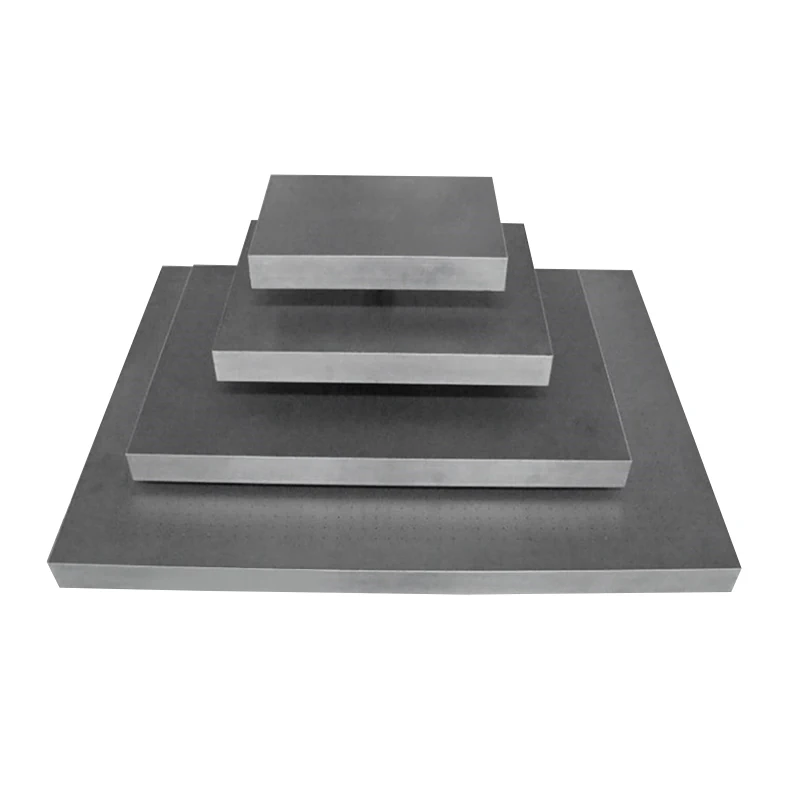

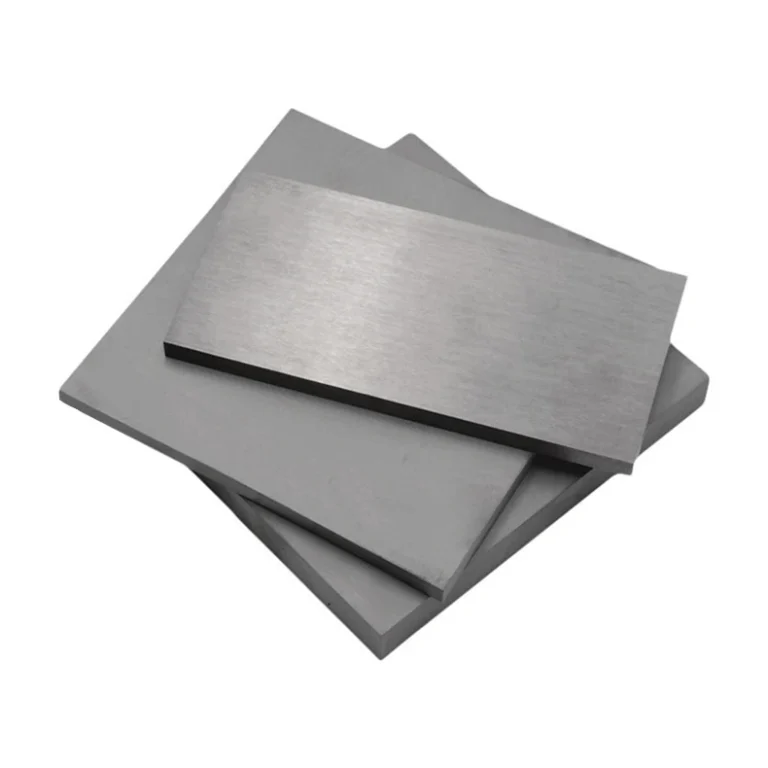

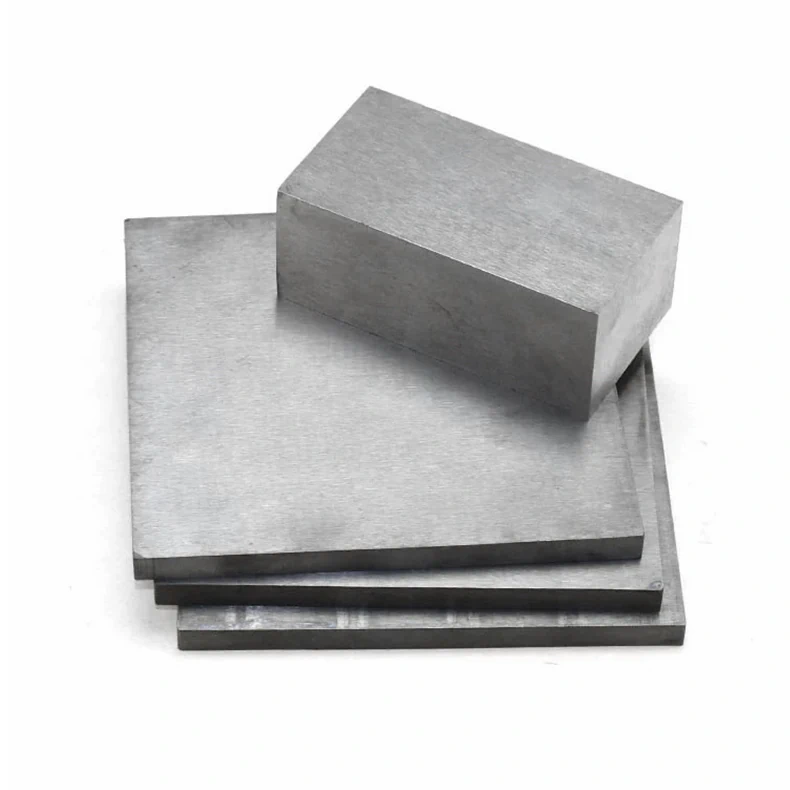

High Performance Tungsten Cobalt Wire Cut Tungsten Carbide Plate
Our Tungsten-Cobalt Wire-Cut Plate is a must-have in industrial manufacturing, especially for multi-station progressive dies and widely used in industrial stamping. It’s also the key material for trimming and shaping tools in cast iron and high-nickel-chromium rolling mills, as well as various stamping die parts like stripper plates, male and female dies, and electronic progressive dies.
Product Features
-
Outstanding Wear and Pressure Resistance: Made of high-quality tungsten-cobalt carbide, it can endure intense stamping wear and pressure. This extends die lifespan for stamping components and reduces replacements. For rolling mill tools, its wear-resistance ensures long-lasting and accurate shaping.
-
Precise Wire-Cutting Process: With a meticulous wire-cutting process, the plate offers remarkable dimensional accuracy. This meets the strict requirements of multi-station progressive die components, ensuring consistent, high-quality stamped products. It’s especially important for precision-demanding stamping molds.
-
Excellent Adaptability: It adapts well to the complex conditions of multi-station progressive dies, maintaining stable performance during continuous stamping. This adaptability also applies to the harsh environments of rolling mill trimming, enhancing production efficiency in both stamping and rolling-mill related manufacturing.
These features make this product a game – changer, boosting efficiency and quality in industrial stamping and rolling-mill production, while cutting costs for enterprises.
PRODUCT SPECIFICATIONS
Material List
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Highly wear-resistant straight barrel powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93 | 1820 | 240 | |
| YH07F | 14.7 | 8 | 0.8 | 92.5 | 1750 | 250 | |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Straight barrel forming and shaping molds |
| YH12F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | |
| YH13F | 14.1 | 13 | 0.8 | 90.5 | 1550 | 350 | lron-silicon-aluminum mold blanks with upper and lower punches. |
| GH20F | 13.9 | 15 | 0.8 | 90 | 1430 | 380 | |
| AH15A | 13.95 | 15 | 1.0 | 89.5 | 1350 | 380 | |
| GH12S | 14.10 | 12 | 1-3 | 89.7 | 1400 | 330 | |
| YH20 | 14.75 | 7 | 1-3 | 91 | 1520 | 280 | Wire drawing dies, magnetic material moldspowder metallurgy moldsand wear-resistant parts. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91 | 1500 | 300 | |
| YH40 | 14.5 | 10 | 3.0 | 89.5 | 1350 | 320 | |
| GH05 | 14.35 | 12 | 3.0 | 88.5 | 1250 | 330 | Molds and mandrels for powder metallurgynon-standard structural components. |
| GH10 | 14.35 | 12 | 10.0 | 87.5 | 1150 | 330 | |
| GH15 | 14 | 15 | 3.0 | 87.5 | 1150 | 350 | |
| GH20 | 14 | 15 | 10.0 | 86 | 1050 | 350 | |
| GH40 | 13.6 | 20 | 10.0 | 84.5 | 950 | 310 | Spherical, thick-walled, and long punches. |
| GH50N | 13.4 | 22 | 10.0 | 83.5 | 850 | 290 | Spherical punches. |
| Grade | Co% (±0.5%) | Density (g/cm3 )±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Impact Resistance (kgf- m/cm2) | Application | |
| LG2 | 6 | 14.924 | 90.8 | 320 | 0.28 | Wear-resistant / Wire drawing die | |
| LG3 | 10 | 14.585 | 89.5 | 340 | 0.5 | Strong beam mold | |
| LG5 | 12 | 14.381 | 88.5 | 340 | 0.55 | ||
| LG6 | 15 | 14.085 | 87.5 | 320 | 0.62 | ||
| GH80 | 20 | 14.618 | 84.8 | 310 | 0.80 | Impact-resistant, large-diameter screw mold, nut upper mold, six-piece mold, screw first-strike mold, shear mold | |
| GH90 | 19 | 13.440 | 83.0 | 300 | 0.90 | Impact-resistant, nut mold (thin head type) | |
| GH95 | 20 | 13.267 | 82.5 | 290 | 0.92 | Impact-resistant, nut mold (thin head type)hot extrusion mold | |
| LT6 | 15 | 13.967 | 87.0 | 330 | 0.75 | Stainless steel, low single deformation, strong beam, ball head | |
| LT7 | 20 | 13.461 | 85.5 | 320 | 0.80 | Stainless steel F-head screw mold, screw, trumpet moldnecking first-strike, straight-hole mold (below 5mm aperture) | |
| LT7A | 19 | 13.536 | 86.0 | 300 | 0.75 | Strong beam, edge/neck shrinking, rivet stamping | |
| LT8 | 22 | 13.332 | 84.5 | 280 | 0.85 | Standard beam, support rod, full-tungsten first-strike | |
| LT10 | 23 | 13.246 | 83.5 | 260 | 0.93 | F-head straight-hole mold, trumpet-hole mold, serrated mold convex-head mold, straight-hole mold (for washers) | |
| LT10A | 21 | 13.242 | 83.0 | 250 | 0.85 | Triangle (with F-head), standard iron & large-head products | |
| HD02 | 23 | 13.074 | 82.0 | 230 | 0.95 | Stacked plates, flange bolts | |
| YG20 | 19 | 13.571 | 86.5 | 300 | 0.60 | Base pad | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH08 | 14.95 | 6 | 1.0 | 92.5 | 1750 | 240 | Wire drawing dies, precision cutting of non-ferrous materialsand powder metallurgy molds for ceramic clay. |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH07F | 14.70 | 8 | 0.8 | 92.5 | 1750 | 250 | Plywood woodworking straight knives and powder metallurgy molds for ceramic clay. |
| YH10F | 14.45 | 10 | 0.8 | 91.5 | 1580 | 350 | Cutting tools for plywood and solid wood (straight and shaped knives),round bar milling cutters, powder metallurgy molds, and drawing dies. |
| YH00F | 14.25 | 12 | 0.6 | 92.2 | 1700 | 300 | End mills, reamers, and other bar materials. |
| YH20 | 14.90 | 7 | 1-3 | 91.0 | 1520 | 280 | Wire drawing dies, powder metallurgy molds, wear-resistant parts and straight woodworking knives. |
| YH15 | 14.00 | 15 | 3.0 | 87.5 | 1150 | 350 | Stamping of aluminum and copper sheets, progressive dies,slitting knives, and powder metallurgy structural components. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | Wire drawing dies, powder metallurgy intermediate molds, rolling rollers cement drills, wear-resistant parts, and tinplate can-making molds. |
| YH30 | 14.60 | 9 | 1-3 | 91.0 | 1500 | 300 | Powder metallurgy, deep drawing dies, wire drawing diesmagnetic material molds, and wear-resistant parts. |
| YH40 | 14.65 | 10 | 3.0 | 89.5 | 1360 | 320 | |
| GH04N | 14.80 | 5 | 0.8 | 93.8 | 1950 | 260 | Resistant to electrical corrosion, widely used in the gold and silver jewelry industry and copper wire industry. |
| GH05N | 14.50 | 7 | 0.6 | 92.8 | 1850 | 240 | |
| GH06N | 14.75 | 5 | 1.0 | 92.0 | 1750 | 280 | Resistant to electrical corrosion, widely used in rollers, the gold and silver jewelry industry, and the copper wire industry. |
| CN9A | 14.55 | Ni | 1.0 | 91.0 | 1550 | 280 | Non-magnetic. |
| CN14 | 14.10 | Ni | 2.0 | 87.0 | 1100 | 290 | |
| CN15 | 14.00 | Ni | 3.0 | 86.0 | 1000 | 290 | |
| Grade | Cobalt Content (Co%) | Density (g/cm³)±0.1 | Hardness (HRA) | Transverse Rupture Strength (kgf/mm²) | Fracture Toughness MPa.m1/2 | Application | |
| YH68N | 6 | 14.92 | 91.00 | 320.00 | 12.00 | Low adhesion, low adhesive wear | |
| GH13S | 12 | 14.10 | 89.50 | 380.00 | 17.00 | Strong cutting edge wear resistance | |
| GH12S | 12 | 14.14 | 90.80 | 360.00 | 16.00 | High wear resistance, high corrosion resistance | |
| AH15A | 15 | 13.98 | 89.50 | 380.00 | 17.00 | Excellent comprehensive performance | |
| GH16S | 19 | 13.51 | 87.50 | 310.00 | 15.00 | Complex shapes, thick plate stamping | |
| GH20F | 15 | 14.03 | 90.00 | 360.00 | 15.00 | Strong versatility | |
| AH15F | 15 | 13.98 | 89.60 | 370.00 | 15.00 | ||
| YH14F | 13 | 14.28 | 90.50 | 330.00 | 15.00 | Connector stamping, 3C hardware components | |
| AH12A | 12 | 14.35 | 91.50 | 390.00 | 12.00 | ||
| YH10F | 10 | 14.58 | 91.80 | 380.00 | 11.00 | ||
| YH12U | 12 | 14.17 | 92.20 | 330.00 | 8.00 | Lead frame, small punches | |
| Grade | Density (g/cm³)±0.1 | Cobalt Content (Co%)(±0.5%) | Grain Size | Hardness (HRA)±0.5 | Hardness (HV10) | Transverse Rupture Strength (kgf/mm²) | Application |
| YH06F | 14.75 | 7 | 0.8 | 93.0 | 1820 | 240 | Thermos cup stretching dies. |
| GH20F | 13.95 | 15 | 0.8 | 90.0 | 1430 | 380 | Battery punching rods. |
| YH20 | 14.75 | 7 | 1-3 | 91.0 | 1520 | 280 | Sleeves and drawing dies. |
| YH25 | 14.75 | 8 | 3.0 | 90.0 | 1450 | 290 | |
| YH30 | 14.55 | 9 | 1-3 | 91.0 | 1500 | 300 | |
| YH40 | 14.50 | 10 | 3.0 | 89.5 | 1350 | 320 | Deep drawing dies and drawing dies. |
